FeedbackReact Native

Illustration

Render a built-in empty, success, error, or offline semantic scene.

Public APILumenIllustrationReact Native

Native example

Use Illustration

Use the built-in scene when its state matches the product message. Keep it decorative when the adjacent heading and description already communicate the same status.

View verified React Native runtime capture

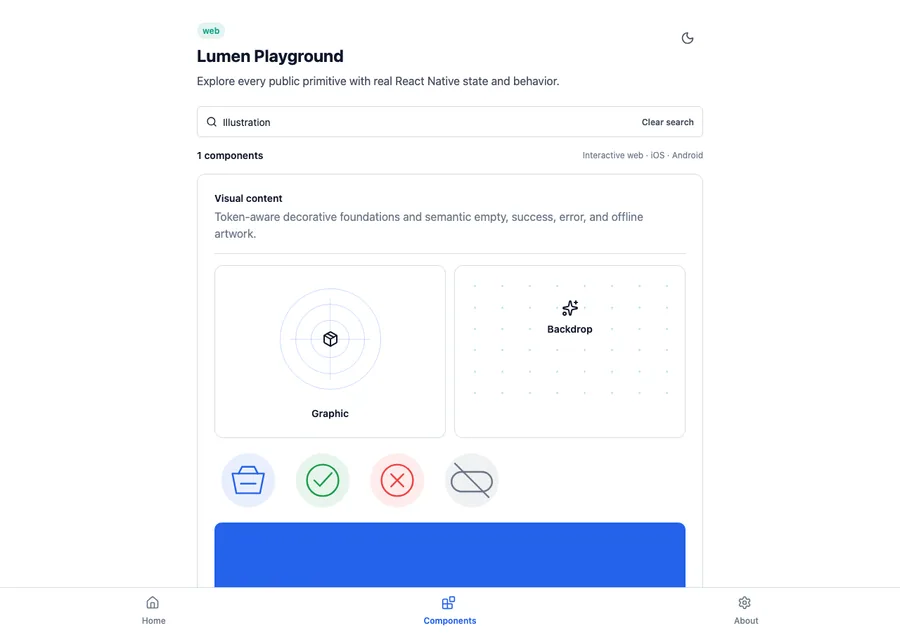

Illustration rendered in the Expo web renderer Lumen playground — Verified runtime captureExpo web renderer

<LumenIllustration
  label="Saved successfully"
  variant="success"
/>

Reference

Public API

The primary shared and platform-specific options exposed by LumenIllustration.

API	Values or type	Default	Description
variant	`empty · success · error · offline`	`empty`	Selects the semantic scene.
tone	`auto · brand · accent · neutral`	`auto`	Uses the state color automatically or an explicit portable tone.
size	`sm · md · lg`	`md`	Selects the shared 96, 128, or 176 unit dimension.
label	`string`	`undefined`	Optionally exposes the illustration as one labeled image.

Native behavior

Design and accessibility

When to use it

Use the built-in scene when its state matches the product message. Keep it decorative when the adjacent heading and description already communicate the same status.

Accessibility

Illustrations are decorative by default; an optional label exposes the complete scene as one image.

Shared component

Available on other platforms

Apple / SwiftUI Android / Compose
